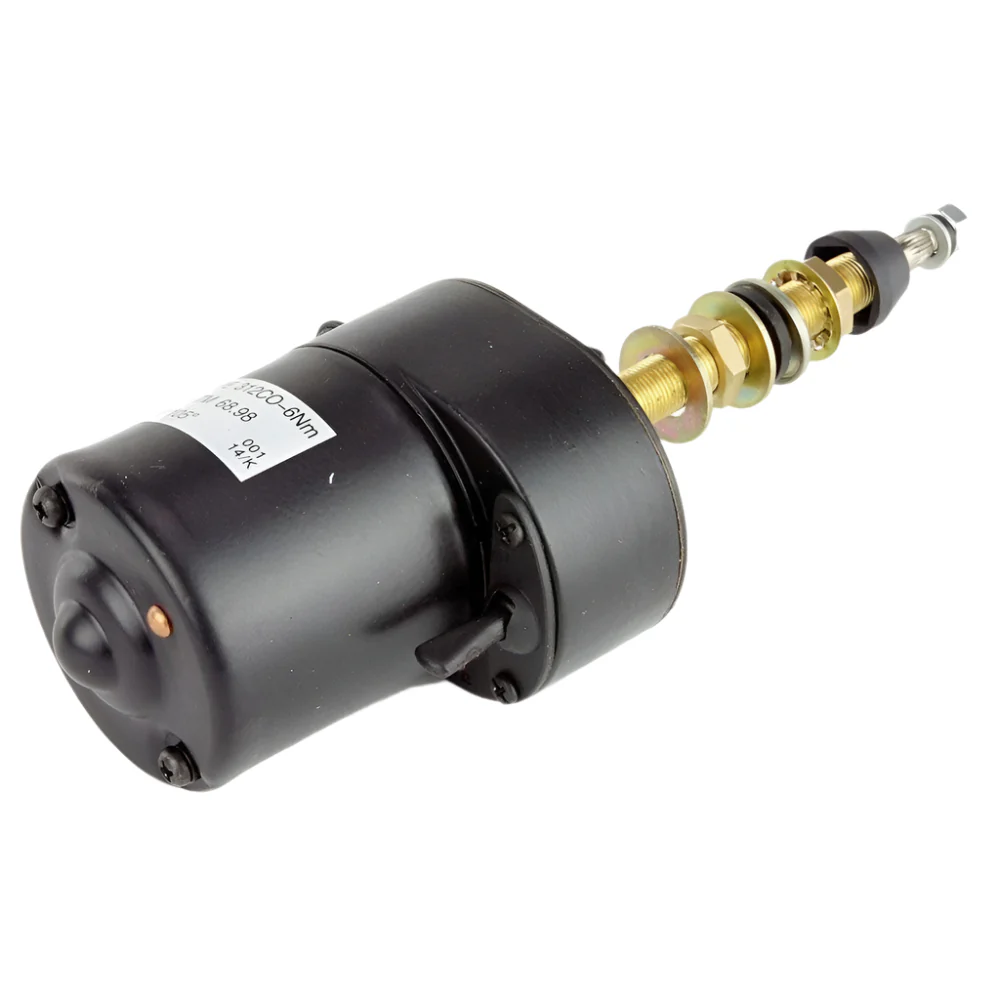

Long Shaft Compact Wiper Motor 105 degrees Black
105º sweep.
6Nm power.
Integral ON/OFF toggle switch.
Two 1/4" male spade connectors.
Tapered spline fitting for tapered wiper arms.
Simple mounting through a 12mm hole for the shaft and an 8mm hole in an integral stabiliser bracket.
Overall shaft length 125mm.
Body length 100mm.
Motor diameter 60mm.
NOTE. TO PREVENT OVERHEAT AND DAMAGE TO THE MOTOR, THE +12 VOLT SUPPLY MUST INCLUDE A TEN AMP FUSE
NOTE: DO NOT STALL THE MOTOR, OR DAMAGE CAN OCCUR
MAXIMUM TORQUE 6 nm
COMPACT LONG SHAFT WIPER MOTOR #TWM105L
105º sweep.
6Nm power.
Integral ON/OFF toggle switch.
Two 1/4" male spade connectors.
Tapered spline fitting for tapered wiper arms.
Simple mounting through a 12mm hole for the shaft and an 8mm hole in an integral stabiliser bracket.
Overall shaft length 125mm.
Body length 100mm.
Motor diameter 60mm.
NOTE. TO PREVENT OVERHEAT AND DAMAGE TO THE MOTOR, THE +12 VOLT SUPPLY MUST INCLUDE A TEN AMP FUSE
NOTE: DO NOT STALL THE MOTOR, OR DAMAGE CAN OCCUR
MAXIMUM TORQUE 6 nm
COMPACT LONG SHAFT WIPER MOTOR #TWM105L
Original: $119.30
-70%$119.30
$35.79Description
105º sweep.
6Nm power.
Integral ON/OFF toggle switch.
Two 1/4" male spade connectors.
Tapered spline fitting for tapered wiper arms.
Simple mounting through a 12mm hole for the shaft and an 8mm hole in an integral stabiliser bracket.
Overall shaft length 125mm.
Body length 100mm.
Motor diameter 60mm.
NOTE. TO PREVENT OVERHEAT AND DAMAGE TO THE MOTOR, THE +12 VOLT SUPPLY MUST INCLUDE A TEN AMP FUSE
NOTE: DO NOT STALL THE MOTOR, OR DAMAGE CAN OCCUR
MAXIMUM TORQUE 6 nm
COMPACT LONG SHAFT WIPER MOTOR #TWM105L
