ROTARY 2 SPEED WIPER SWITCH

Nice quality. Nice action.

2 speed wiper switch with 'Park' facility.

Mounts through an 11mm hole.

Two flats on mounting thread.

Maximum panel thickness 6mm.

Knob diameter 30mm.

1/4" Spade Terminals on rear.

Rear projection 32mm.

Switch body diameter 34mm.

16 Amp max.

NOTE: Your wiper motor must have two-speed winding and park facility for this switch to work correctly.

You will also require a 5 pin change over relay if you are using with our 2 speed wiper motor.

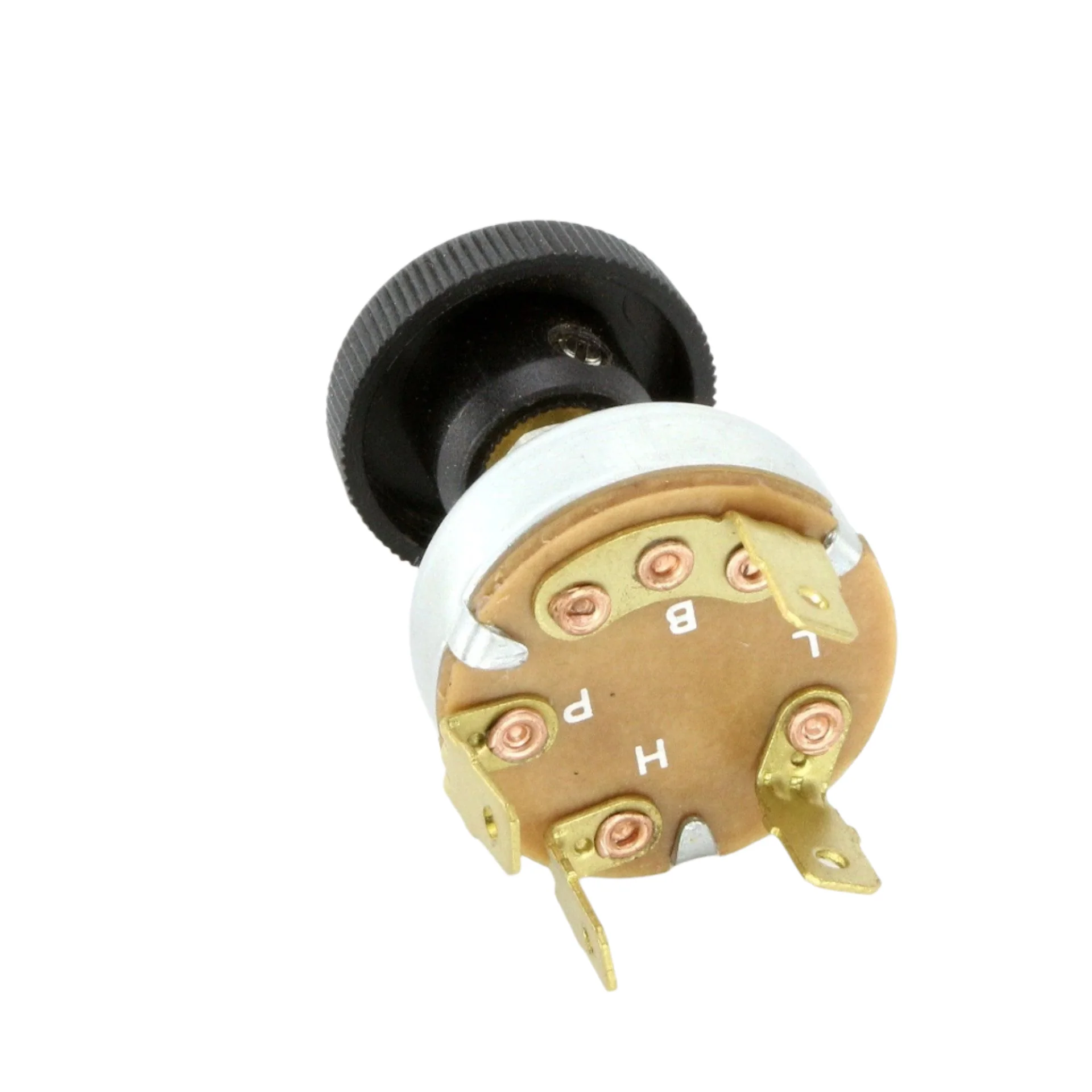

WIRING:

B = +12 volts in.

L = Low Speed out.

H = High Speed Out.

P = Park

2 SPEED ROTARY WIPER SWITCH #WIPSW2
