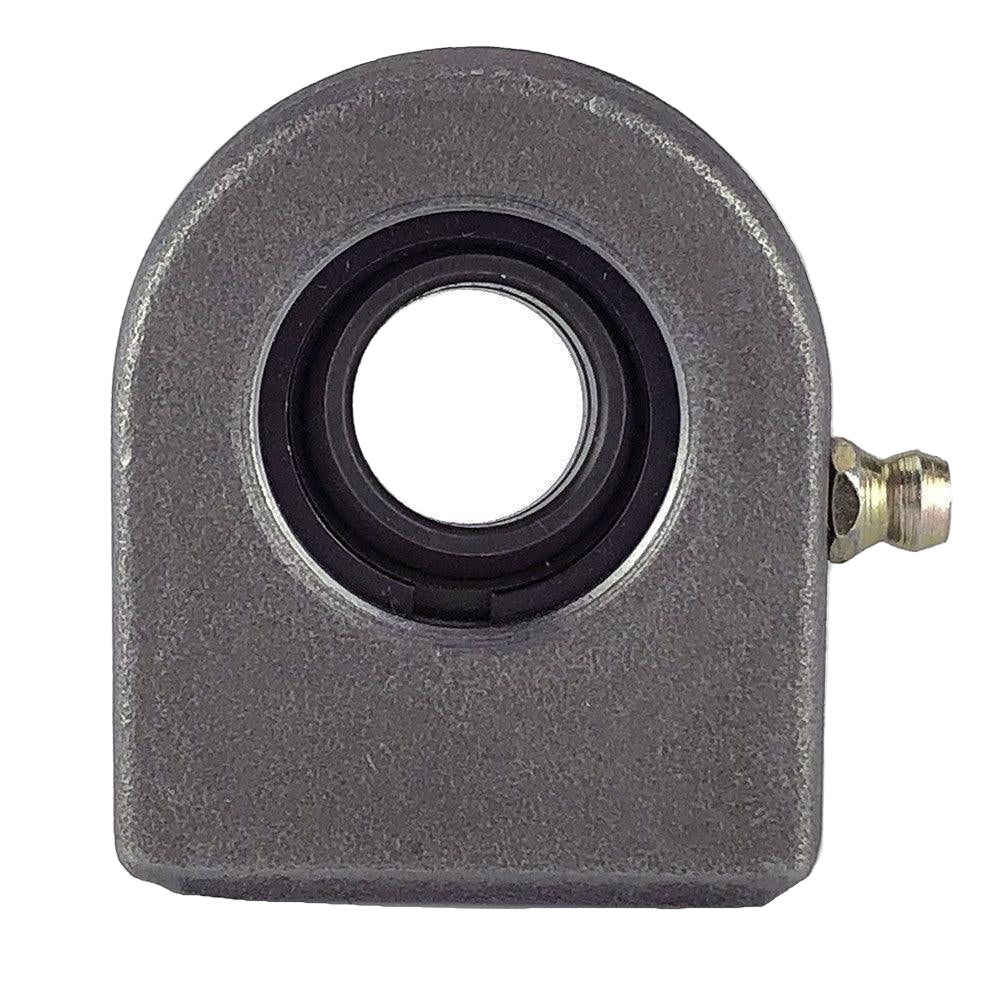

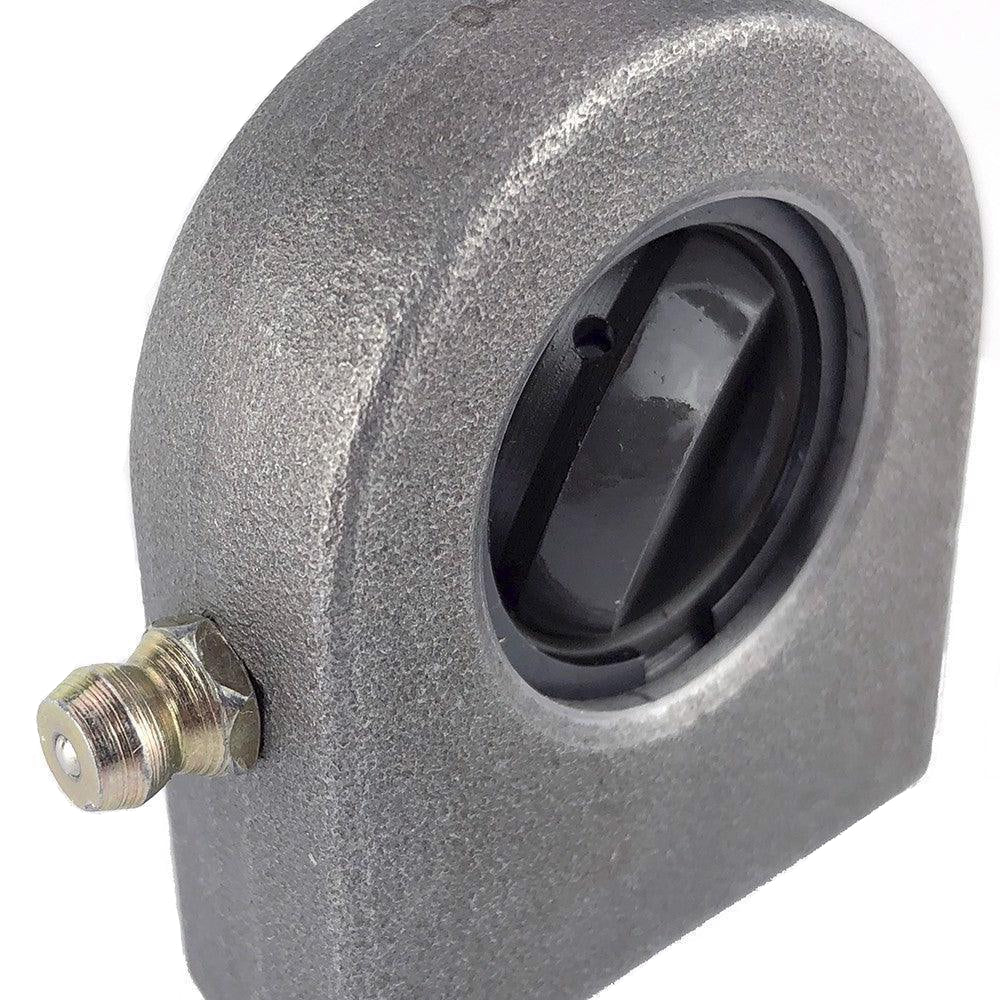

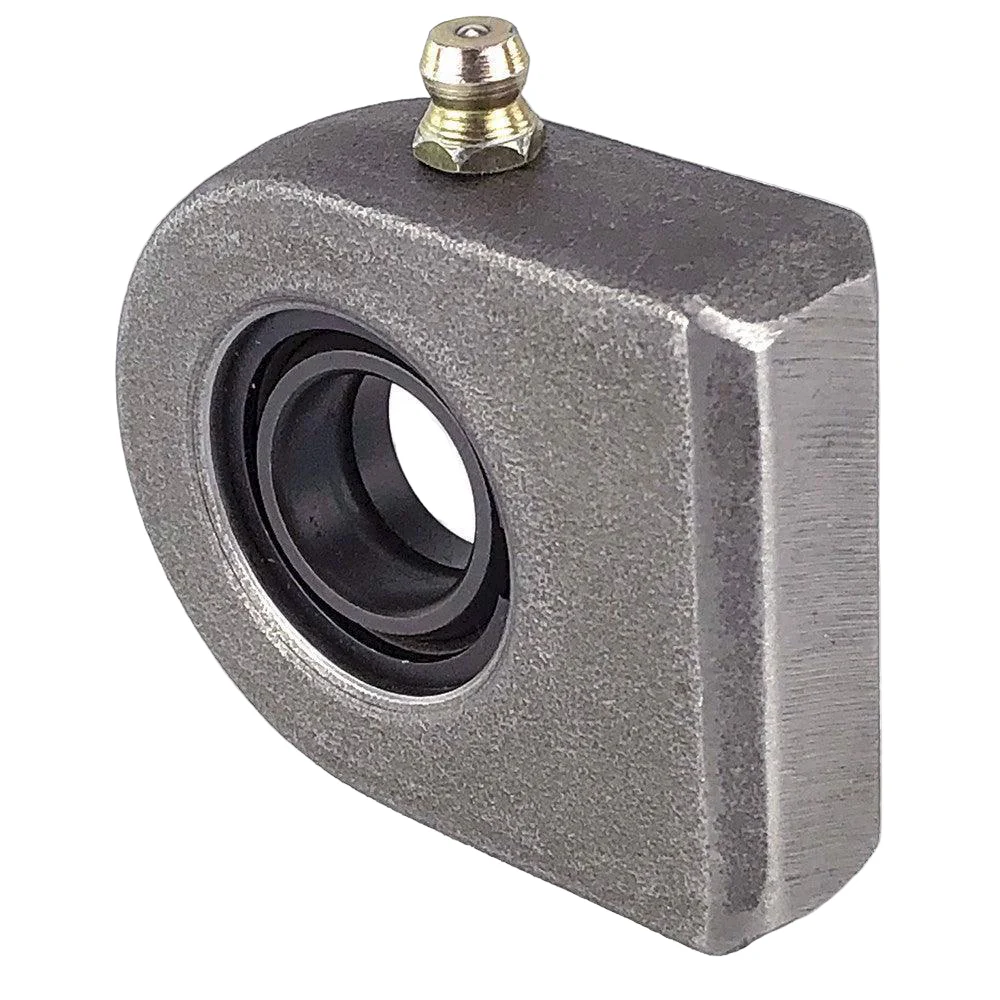

Weldable Forged Case Pillow Block 15mm
Pillow Blocks are used as floating supports for rotating shafts such as steering columns.
This one has a casing of forged steel with a chamfered base for welding onto a steel chassis or frame.
You could also drill and tap the steel housing for alternative mounting options.Ā
The hardened, inner, spherical bearing accepts a 15mm diameter shaft
which can ārockā up to 44 degrees.
A grease nipple channels grease directly to the moving surfaces.
Size 53mm high x 45mm wide x 16mm thick.
Weight 220 gms.
NOTE: SHAFT NOT INCLUDED
SOME STEERING COLUMNS āOSCILLATEā WHEN TURNING.
THIS ITEM IS UNSUITABLE FOR THESE COLUMNS.
ENSURE THAT THE SECTION OF STEERING COLUMN YOU INTEND TO SUPPORTĀ WITH A PILLOW BLOCK ROTATES ONLY ON ITāS OWN AXIS AND DOES NOT OSCILLATE.
WELDABLE FORGED CASEL CASE PILLOW BLOCK 15mm I.D.Ā #PIL152
