Steering Universal Joint Forged Spline and DD

Product image 1
1 / 4

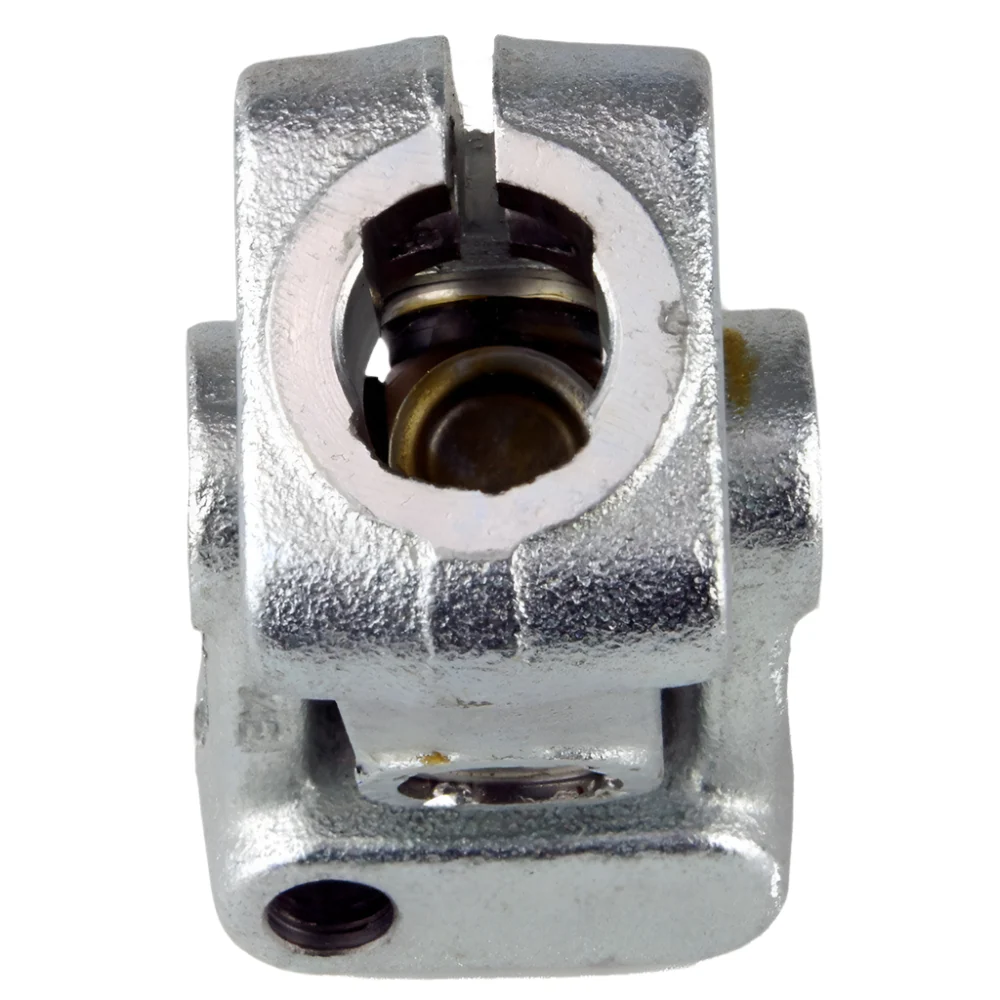

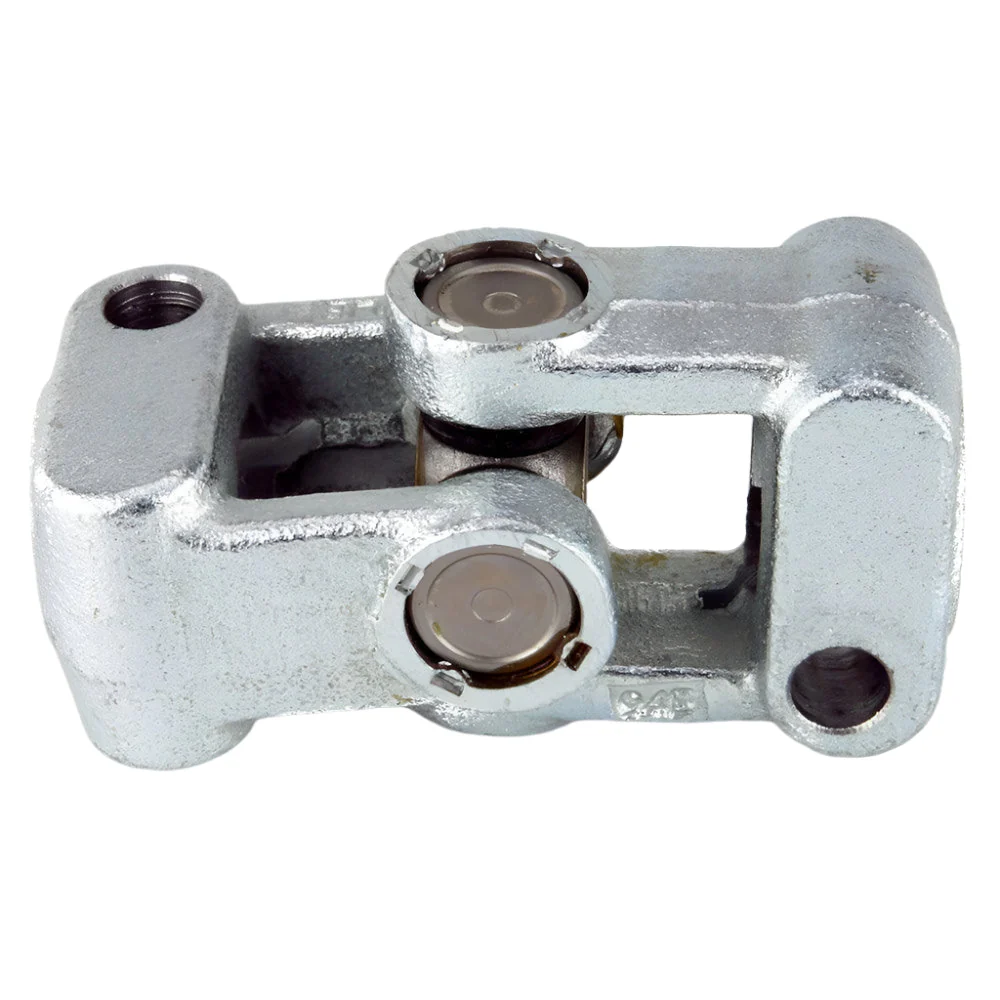

Steering Universal Joint Forged Spline and DD

Zinc plated.

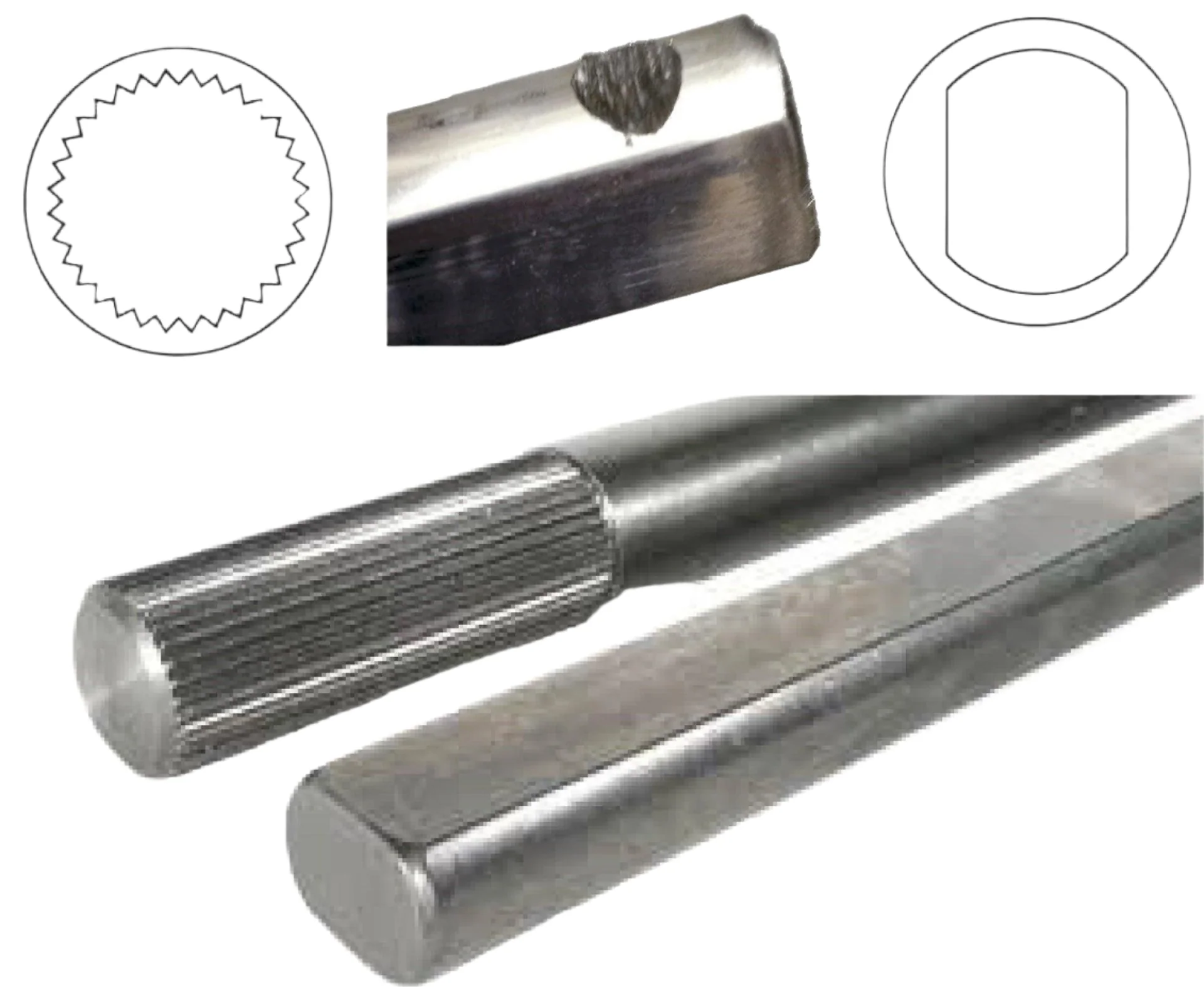

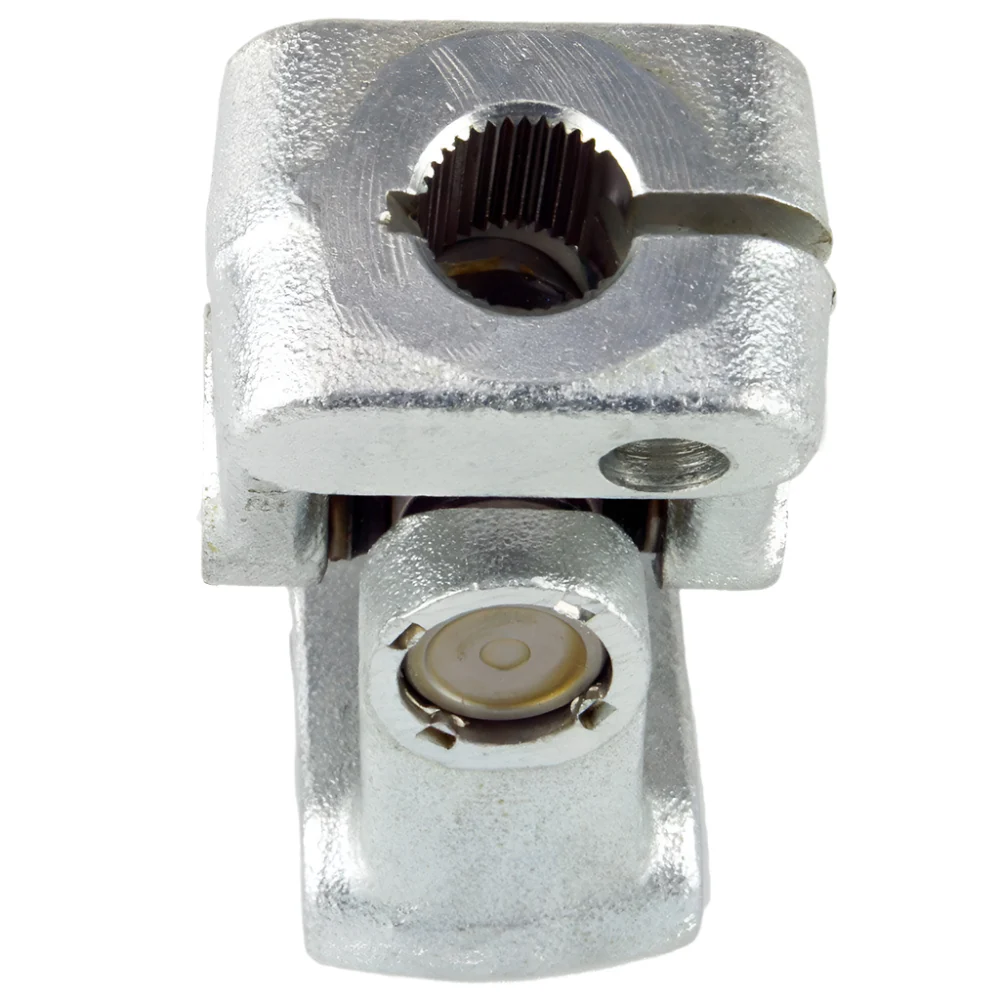

14mm (9/16") x 36 spline at one end and 3/4" 'DD' at the other end.

Size 80mm long x 45mm maximum diameter.

Compact and strong needle roller joint for steering columns & gear linkages.

Weight 449g.

NOTE:  Both shafts will require a retaining groove for the pinch bolt.

SHAFTS NOT INCLUDED

FORGED UNIVERSAL JOINT 36 SPLINE and 'DD' #UJD1

Zinc plated.

14mm (9/16") x 36 spline at one end and 3/4" 'DD' at the other end.

Size 80mm long x 45mm maximum diameter.

Compact and strong needle roller joint for steering columns & gear linkages.

Weight 449g.

NOTE:  Both shafts will require a retaining groove for the pinch bolt.

SHAFTS NOT INCLUDED

FORGED UNIVERSAL JOINT 36 SPLINE and 'DD' #UJD1

$37.12
Steering Universal Joint Forged Spline and DD—
$37.12

Description

Zinc plated.

14mm (9/16") x 36 spline at one end and 3/4" 'DD' at the other end.

Size 80mm long x 45mm maximum diameter.

Compact and strong needle roller joint for steering columns & gear linkages.

Weight 449g.

NOTE:  Both shafts will require a retaining groove for the pinch bolt.

SHAFTS NOT INCLUDED

FORGED UNIVERSAL JOINT 36 SPLINE and 'DD' #UJD1
