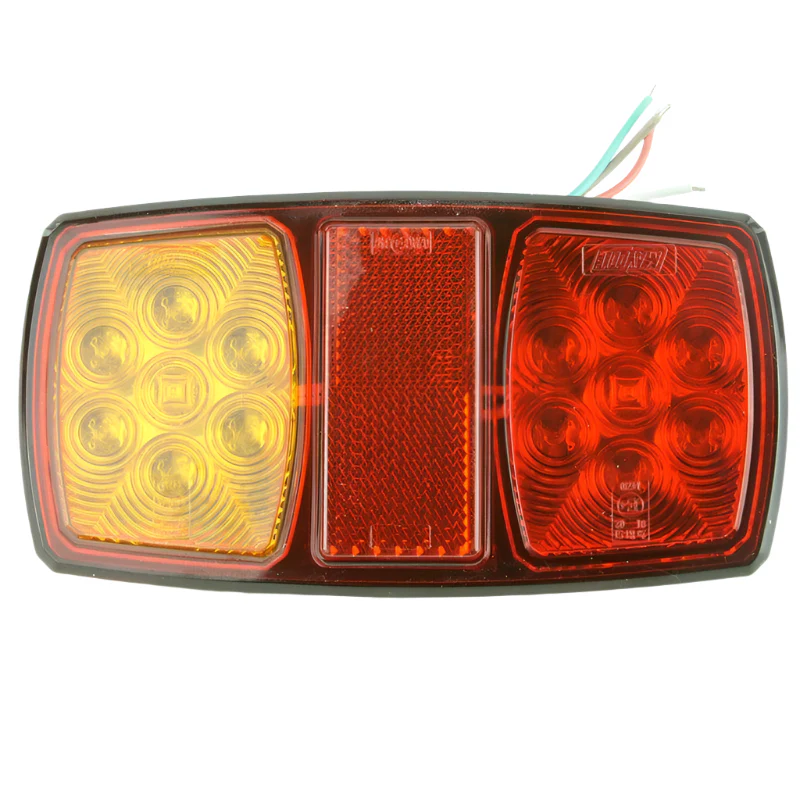

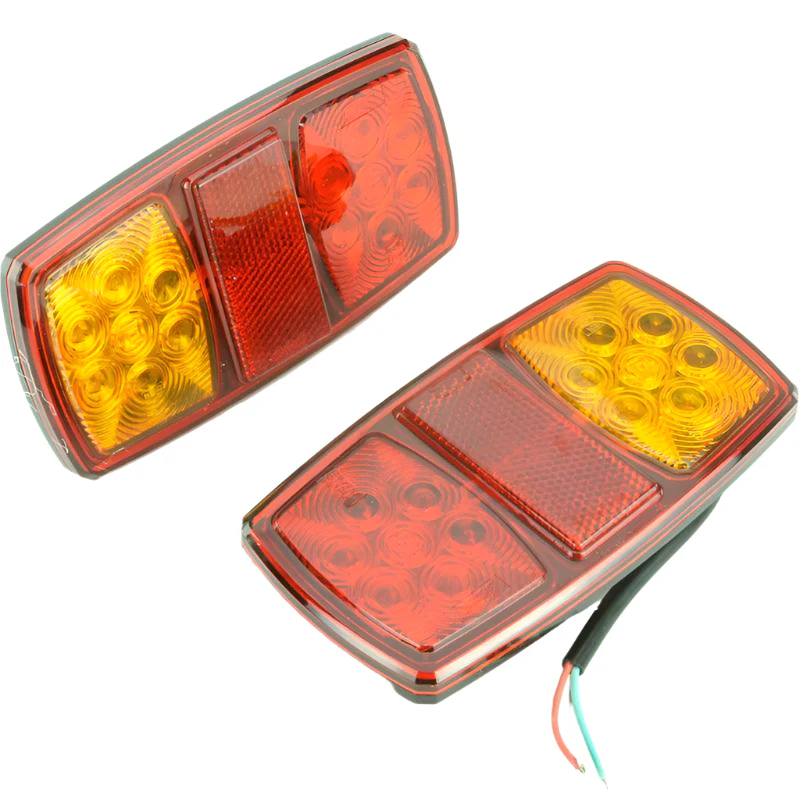

Slimline LED Rectangular All-In-One Rear Lamp With Built-In Reflector 150mm

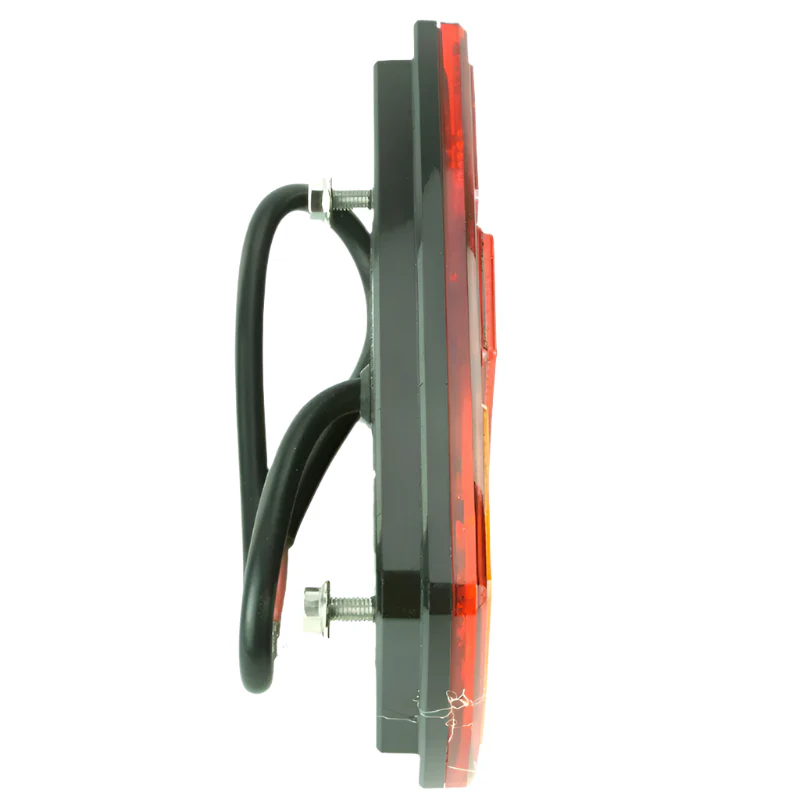

These very neat and compact stop tail and indicator lights can be surface mounted and will only protrude 24mm.
Alternatively, they can be mounted in a rectangular hole 67mm x 135m where they
will protrude even less - just 15mm.
Overall size 80mm x 150mm.

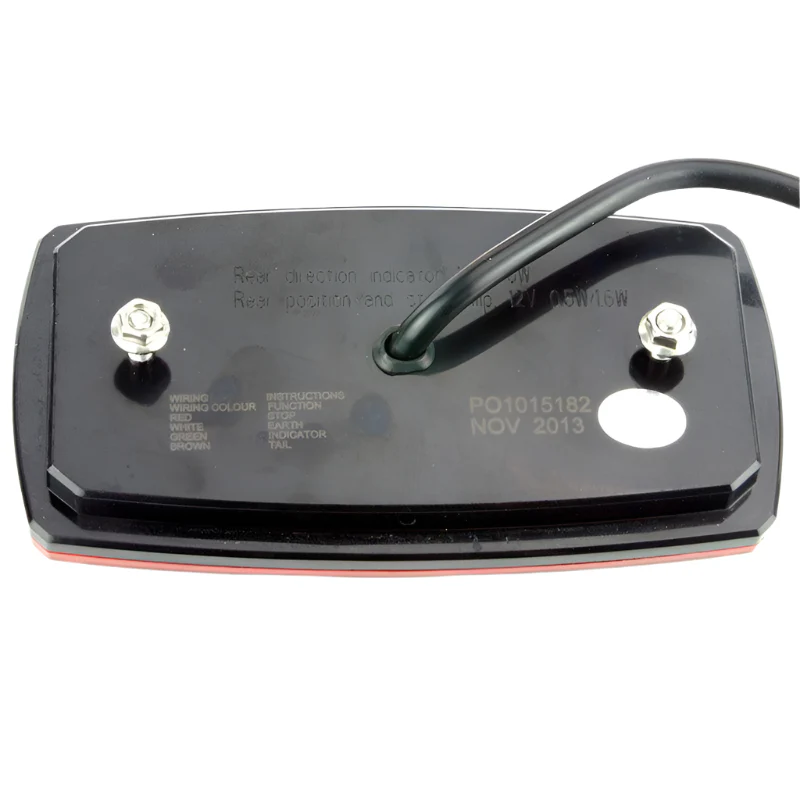

Two M5 mounting studs on rear at 110mm centres.
300mm long flylead.
Indicator and stop 16 watts.
Tail light 0.5 watts.
Weight 300 gms pair.
12 Volt only. Ā
'E4' Marking
WIRING:
EARTH - White
STOP - Red
INDICATOR - Yellow
TAIL - Brown.
SLIMLINE LED STOP TAIL AND INDICATOR WITH BUILT-IN REFLECTOR #RL89
These very neat and compact stop tail and indicator lights can be surface mounted and will only protrude 24mm.
Alternatively, they can be mounted in a rectangular hole 67mm x 135m where they
will protrude even less - just 15mm.
Overall size 80mm x 150mm.
Two M5 mounting studs on rear at 110mm centres.
300mm long flylead.
Indicator and stop 16 watts.
Tail light 0.5 watts.
Weight 300 gms pair.
12 Volt only. Ā
'E4' Marking
WIRING:
EARTH - White
STOP - Red
INDICATOR - Yellow
TAIL - Brown.
SLIMLINE LED STOP TAIL AND INDICATOR WITH BUILT-IN REFLECTOR #RL89
Description
These very neat and compact stop tail and indicator lights can be surface mounted and will only protrude 24mm.
Alternatively, they can be mounted in a rectangular hole 67mm x 135m where they
will protrude even less - just 15mm.
Overall size 80mm x 150mm.
Two M5 mounting studs on rear at 110mm centres.
300mm long flylead.
Indicator and stop 16 watts.
Tail light 0.5 watts.
Weight 300 gms pair.
12 Volt only. Ā
'E4' Marking
WIRING:
EARTH - White
STOP - Red
INDICATOR - Yellow
TAIL - Brown.
SLIMLINE LED STOP TAIL AND INDICATOR WITH BUILT-IN REFLECTOR #RL89
