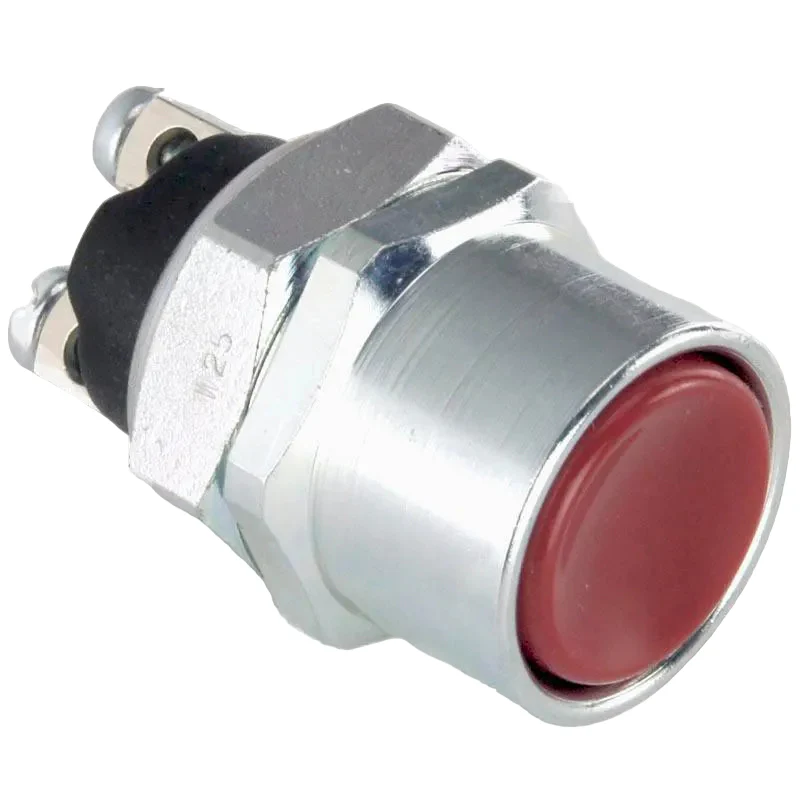

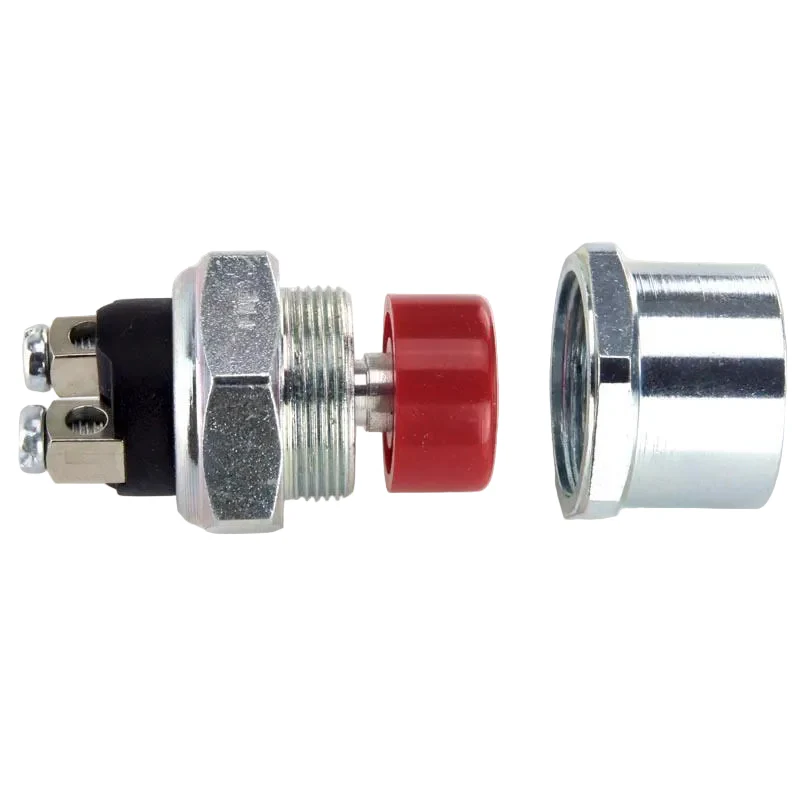

Shrouded Heavy Duty Red/Chrome Push Button Switch
A heavy -duty switch with a 20mm diameter shrouded red button.
The plated metal shroud is 25mm diameter and protrudes 20mm from the mounting surface.
The plated metal switch body has 26mm rear projection.
Fits in a 22mm diameter hole in a panel up to 3mm thick.
Momentary Action (Non-latching)

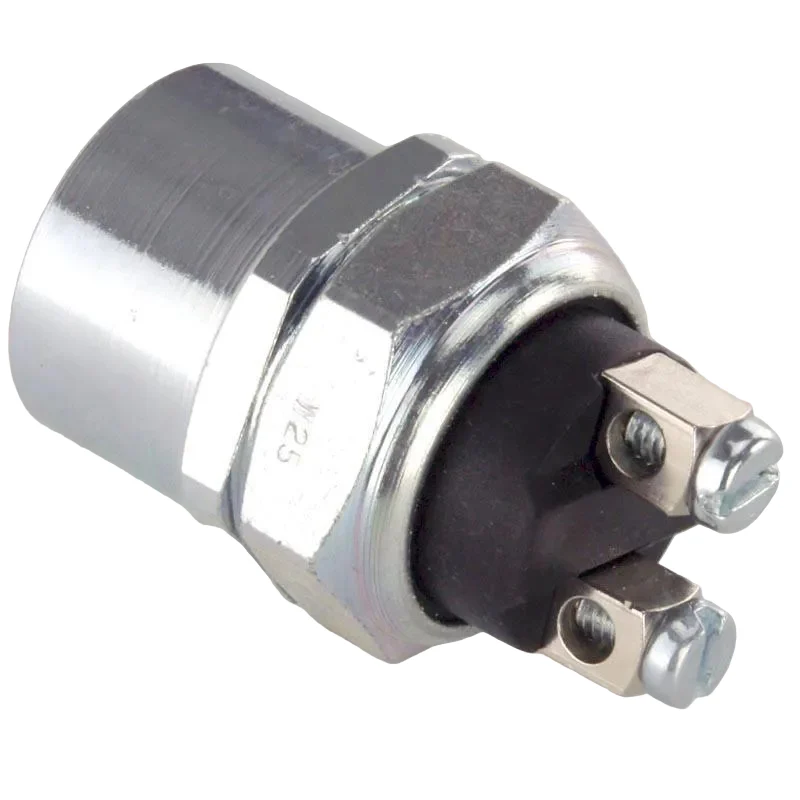

Screw terminals on rear.
27mm A/F hex on switch body and shroud.
25 Amp.
RED & CHROME PUSH BUTTON SWITCH #PBSWRC2
A heavy -duty switch with a 20mm diameter shrouded red button.
The plated metal shroud is 25mm diameter and protrudes 20mm from the mounting surface.
The plated metal switch body has 26mm rear projection.
Fits in a 22mm diameter hole in a panel up to 3mm thick.
Momentary Action (Non-latching)
Screw terminals on rear.
27mm A/F hex on switch body and shroud.
25 Amp.
RED & CHROME PUSH BUTTON SWITCH #PBSWRC2
Original: $13.26
-70%$13.26
$3.98Description
A heavy -duty switch with a 20mm diameter shrouded red button.
The plated metal shroud is 25mm diameter and protrudes 20mm from the mounting surface.
The plated metal switch body has 26mm rear projection.
Fits in a 22mm diameter hole in a panel up to 3mm thick.
Momentary Action (Non-latching)
Screw terminals on rear.
27mm A/F hex on switch body and shroud.
25 Amp.
RED & CHROME PUSH BUTTON SWITCH #PBSWRC2
