LED Indicating 12 Way Blade Fuse Box
FUSE BOXES WITH LED INDICATORS.

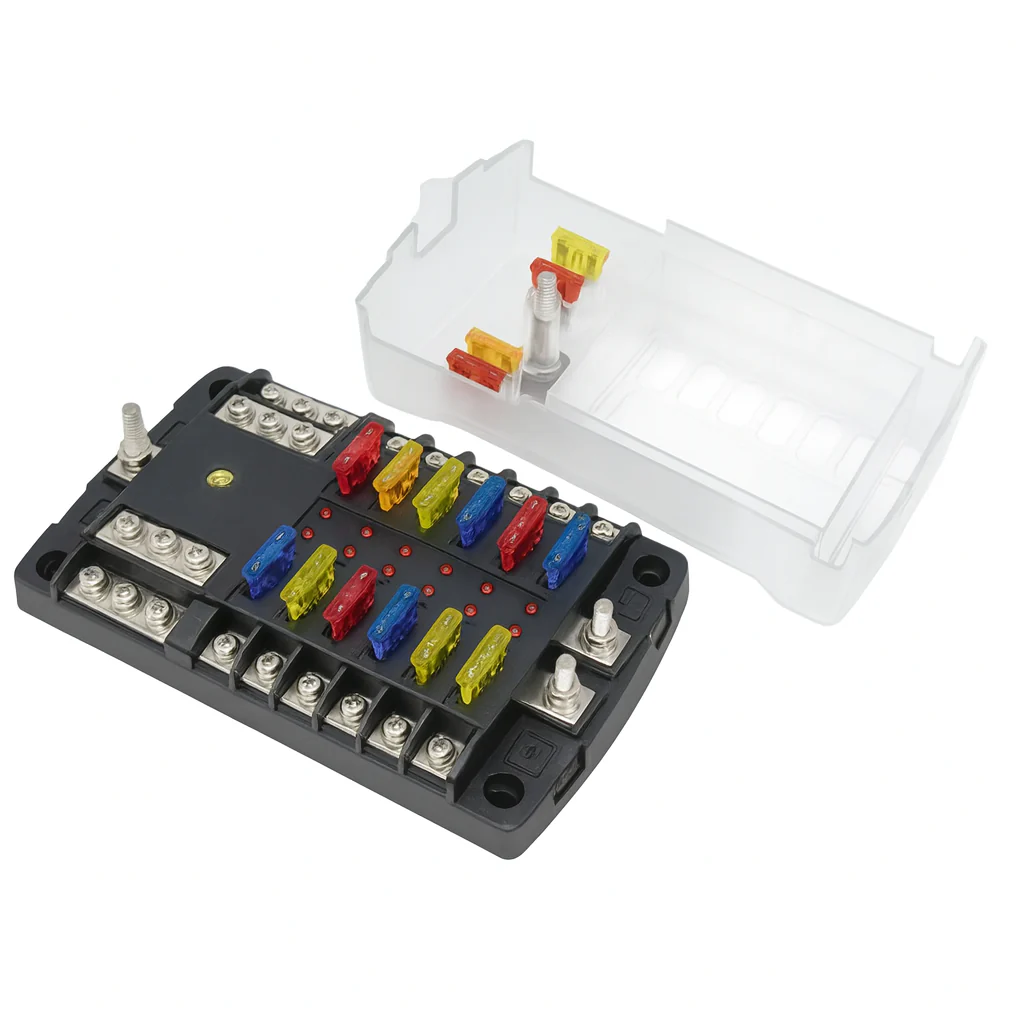

These very nice fuse boxes have a red LED next to each fuse that will illuminate if the fuse is blown.

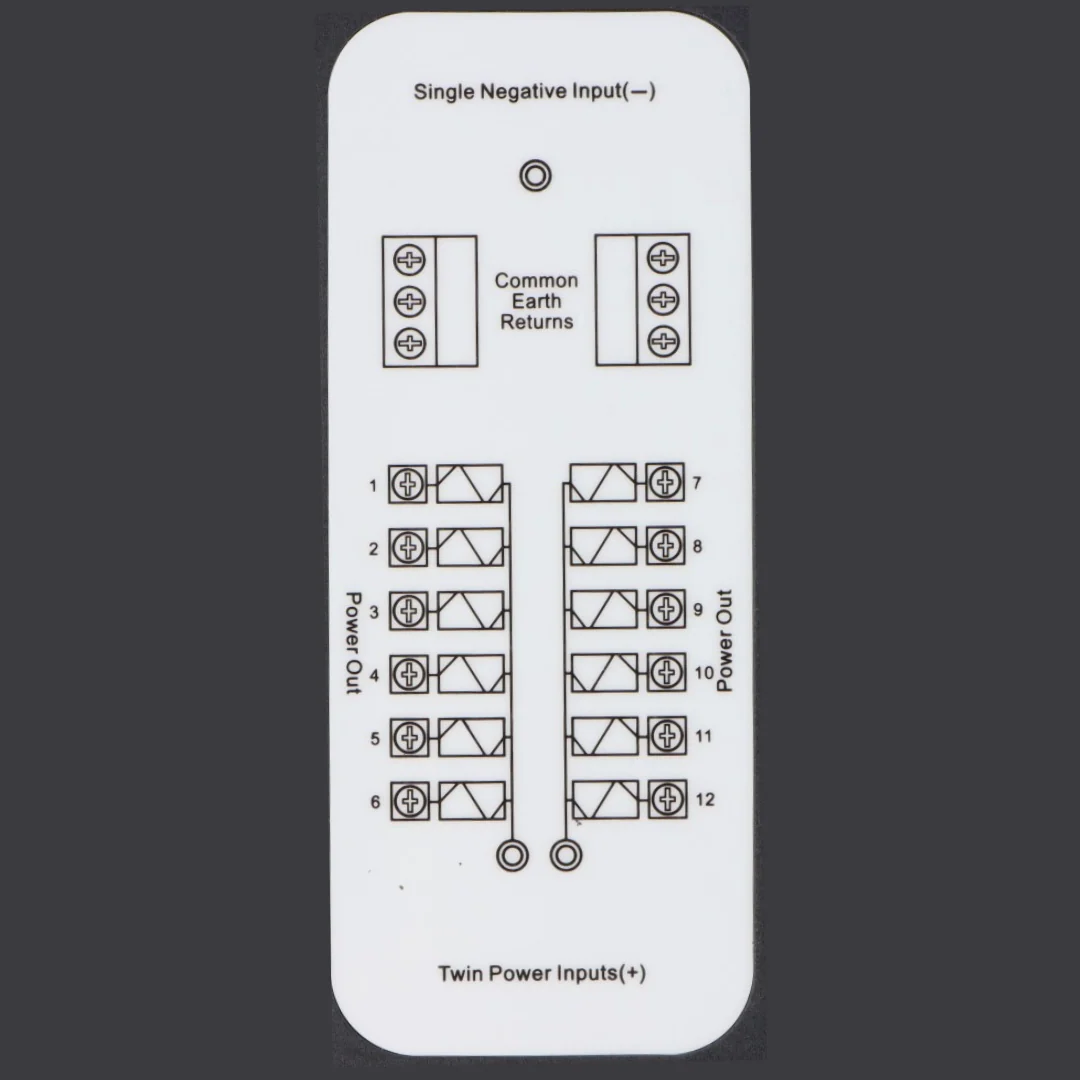

This version has a Negative (earth) distribution section with one M5 threaded stud input post and 12 x M4 output screws. (This could also be used as unfused live distribution.)
The Positive side is split into two separate busbars, each with an M5 threaded stud input and 6 x fused outputs so you can choose either permanent or ignition switched live on each side.
You can use either ring or fork terminals on all the input and output connections.

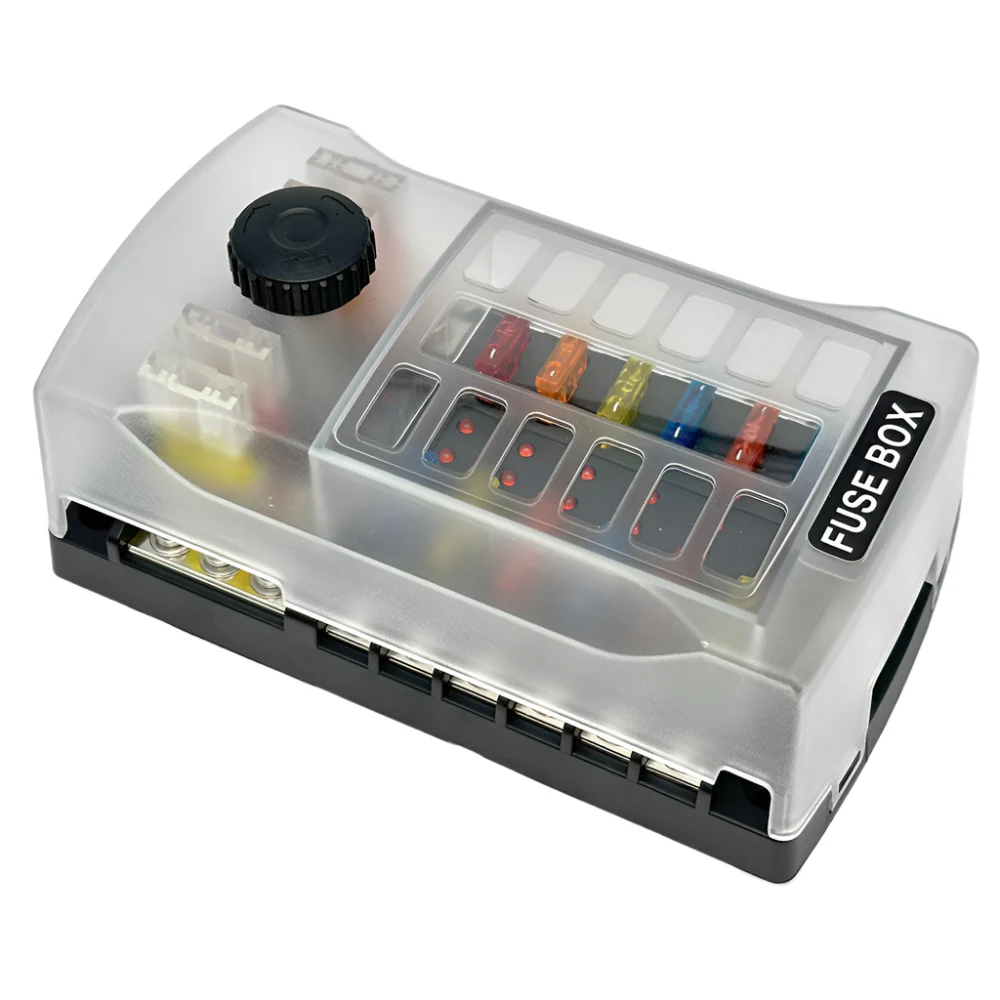

The clear plastic cover has storage for four spare fuses and is secured with a threaded knob.
A legend sticker sheet and twenty assorted fuses are included.
Size: 165 x 95 x 60mm high.
Four 5mm mounting holes at 74mm x 140mm centres.
12 WAY FUSE BOX WITH LED INDICATORS #FBLED12
