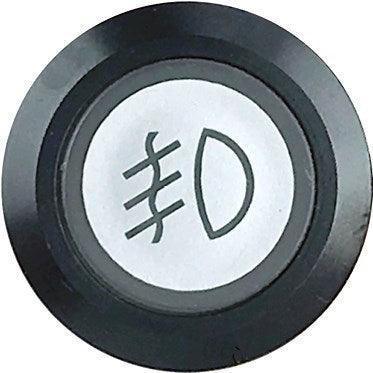

Front Fog Switch Illuminated Black Bezel

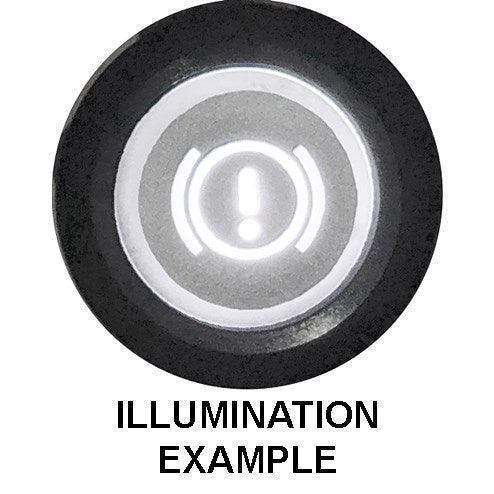

Illuminated ring and legend. Push button centre.

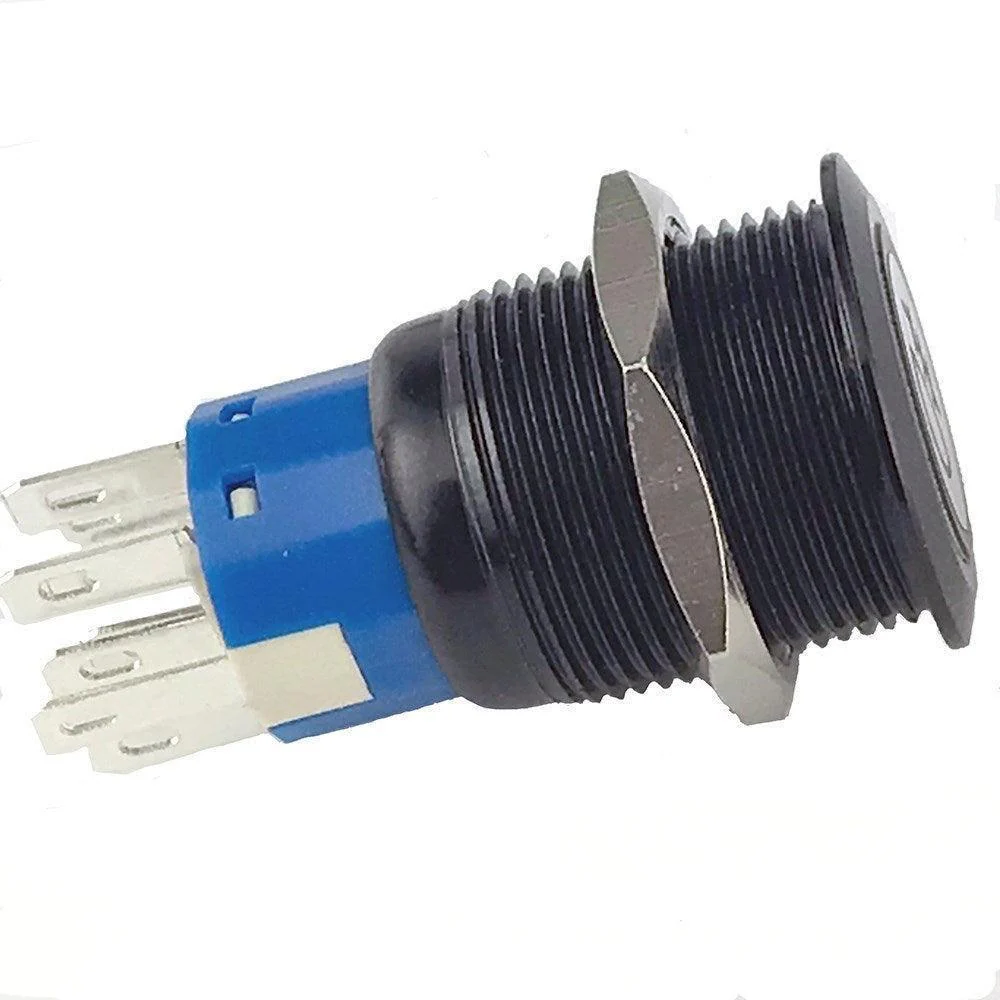

Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.Ā
Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.

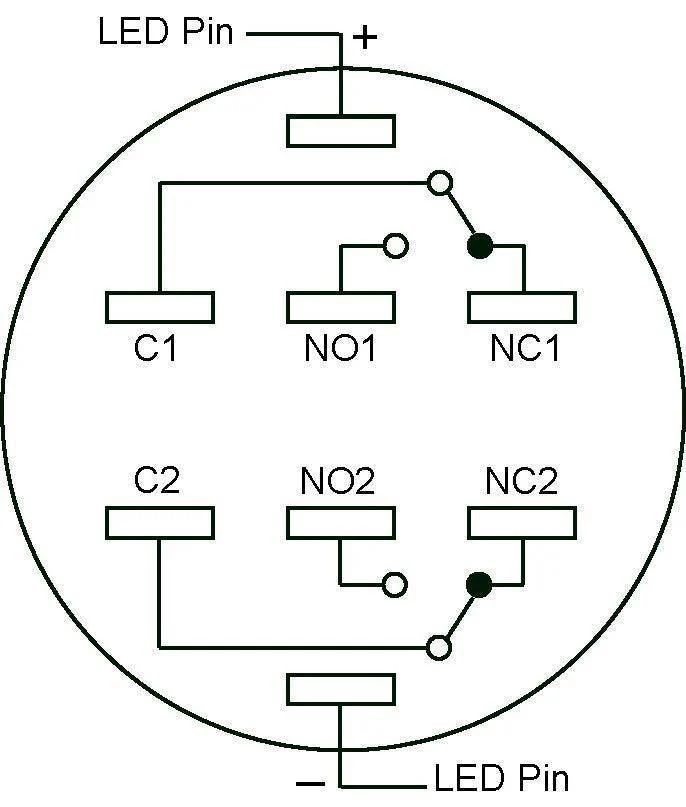

Double Pole ,Normally Open and Normally Closed contacts.
5 Amp current rating.
Supplied with six pre-assembled terminals and 200mm long wires and a plug block.
The White LED illumination has independant +12v and -12v terminals.
22mm A/F Hex nut and rubber sealing āOā ring included.
LATCHING FRONTĀ FOG PUSH BUTTON SWITCHĀ #BPBFF
Illuminated ring and legend. Push button centre.
Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.Ā
Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.
Double Pole ,Normally Open and Normally Closed contacts.
5 Amp current rating.
Supplied with six pre-assembled terminals and 200mm long wires and a plug block.
The White LED illumination has independant +12v and -12v terminals.
22mm A/F Hex nut and rubber sealing āOā ring included.
LATCHING FRONTĀ FOG PUSH BUTTON SWITCHĀ #BPBFF
Original: $11.93
-70%$11.93
$3.58Description
Illuminated ring and legend. Push button centre.
Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.Ā
Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.
Double Pole ,Normally Open and Normally Closed contacts.
5 Amp current rating.
Supplied with six pre-assembled terminals and 200mm long wires and a plug block.
The White LED illumination has independant +12v and -12v terminals.
22mm A/F Hex nut and rubber sealing āOā ring included.
LATCHING FRONTĀ FOG PUSH BUTTON SWITCHĀ #BPBFF
