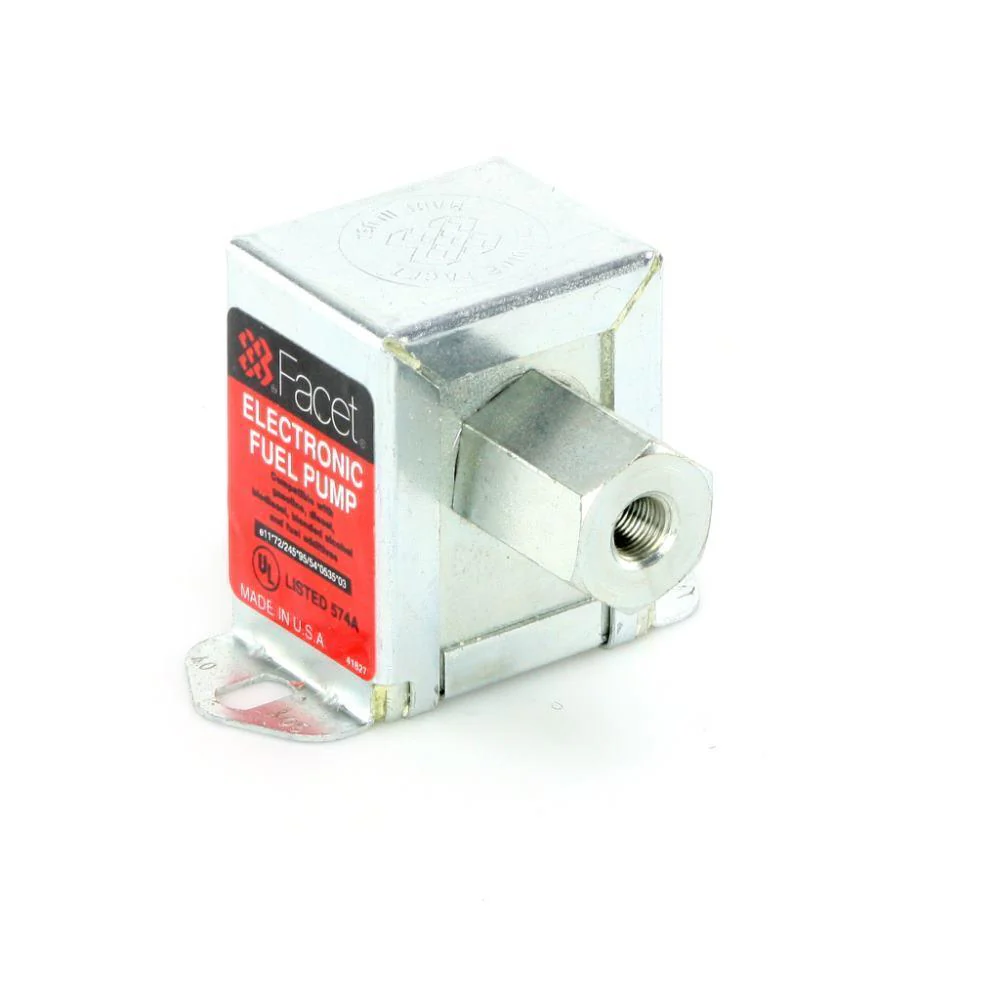

Facet ROAD Solid State Cube Pump 80mm
12 volt.
Reliable solid state internals, no electrical contacts to burn out, no bearings to wear and no diaphragms to perish.Ā
Less than 2 amp current drain.
Will self prime up to 0.3mtrs lift.
Footprint 80mm x 80mm x 60mm high (without unions).
2 bolt fixing at 65mm centres. Union thread size 1/8" npt. Ā
PIPE UNIONS NOT INCLUDED
Weight 469gm.
Operating temperature range -31 to +55 deg C.
Will pump fromĀ 3 psi to 4.5 psi.
Flow rate 113 ltrs/hour (30 US gal/hr.)Ā
IMPORTANT NOTE: ALL FUEL PUMPS MUST BE FITTED WITH A PRE-FILTER ON THE INLET SIDE. RETURNED PUMPS WILL NOT BE REPLACED OR REFUNDED IF FOUND DAMAGED DUE TO DEBRIS.
