ECU Switch Illuminated Black Bezel

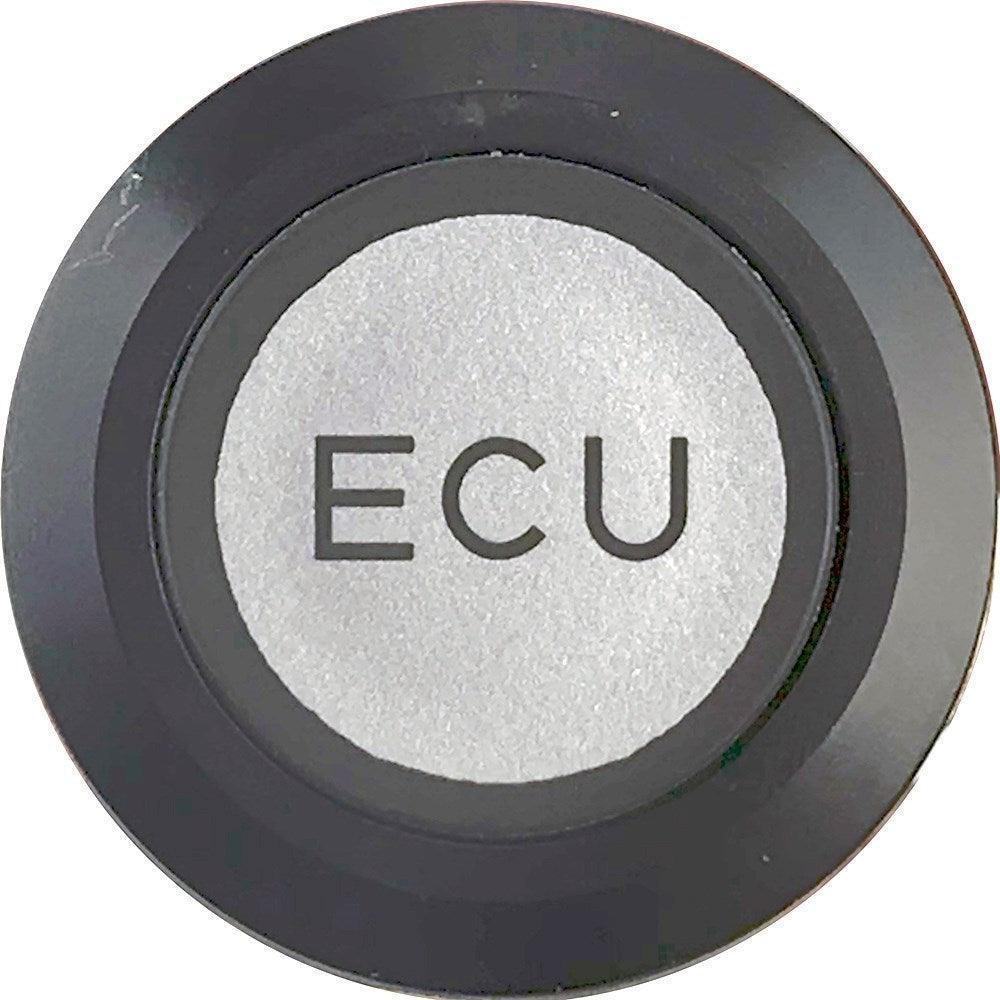

Illuminated ring and legend. Push button centre.

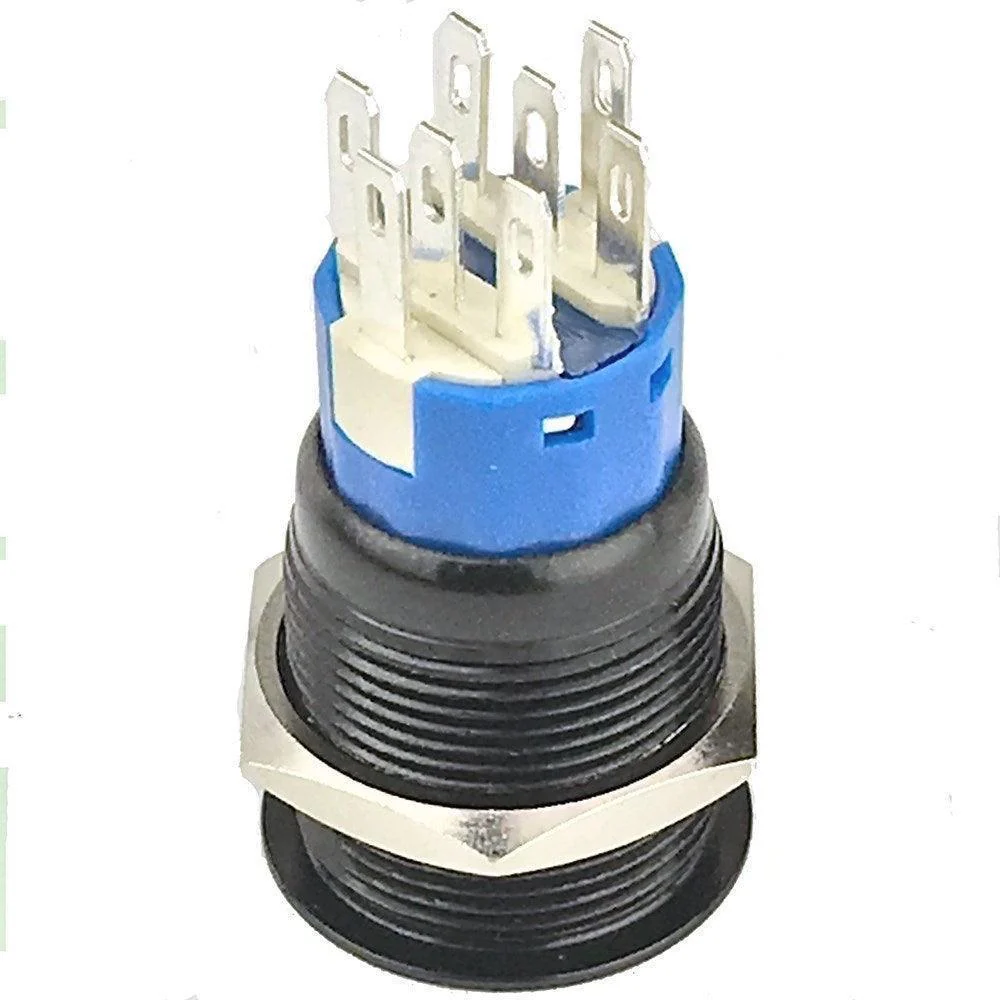

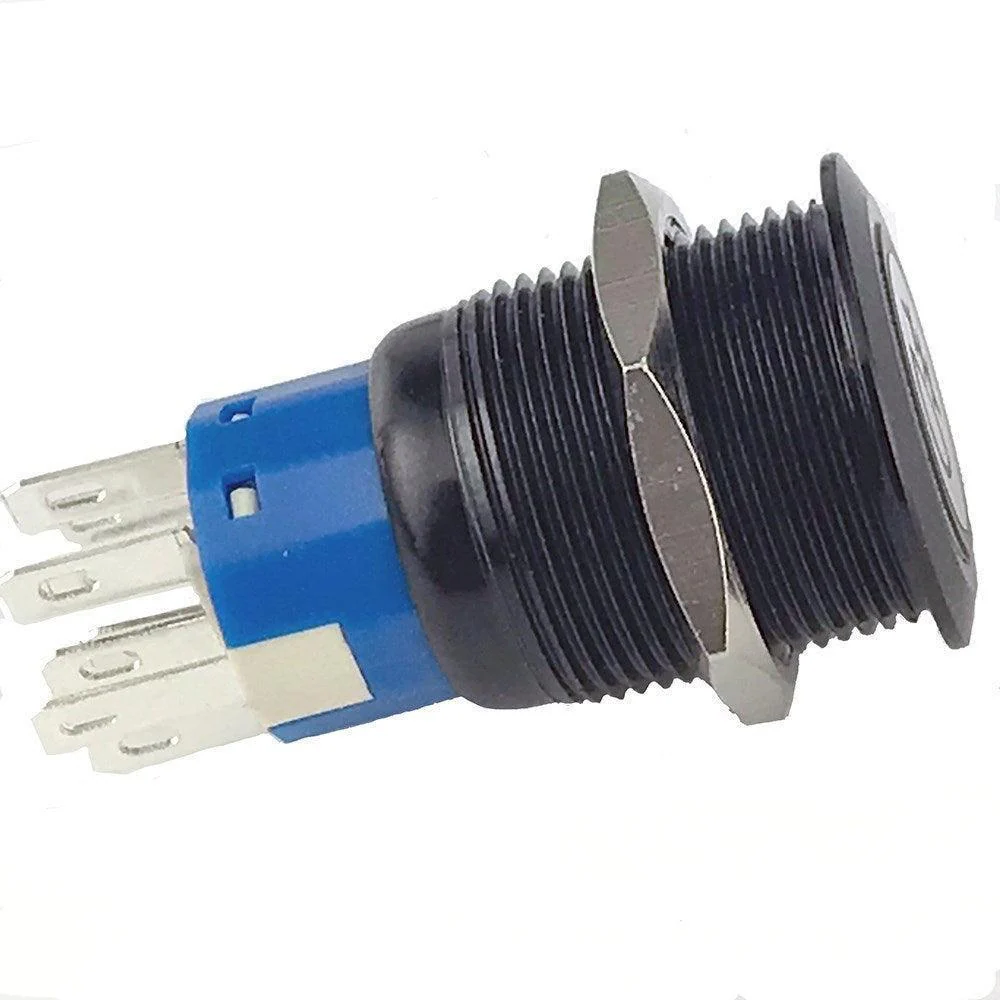

Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.

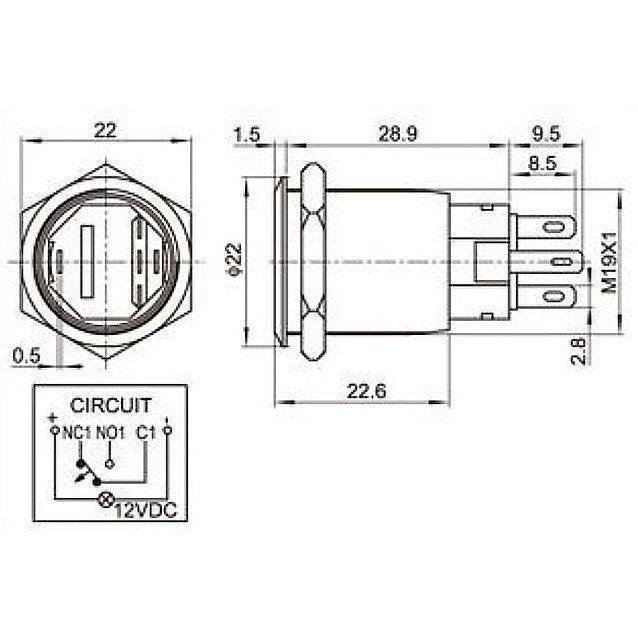

Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.
Double Pole ,Normally Open and Normally Closed contacts.
5 Amp current rating.
Supplied with six pre-assembled terminals and 200mm long wires and a plug block.
The White LED illumination has independant +12v and -12v terminals.
22mm A/F Hex nut and rubber sealing āOā ring included.
MOMENTARY PUSH BUTTON ECU SWITCH #BPBECU
Illuminated ring and legend. Push button centre.
Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.
Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.
Double Pole ,Normally Open and Normally Closed contacts.
5 Amp current rating.

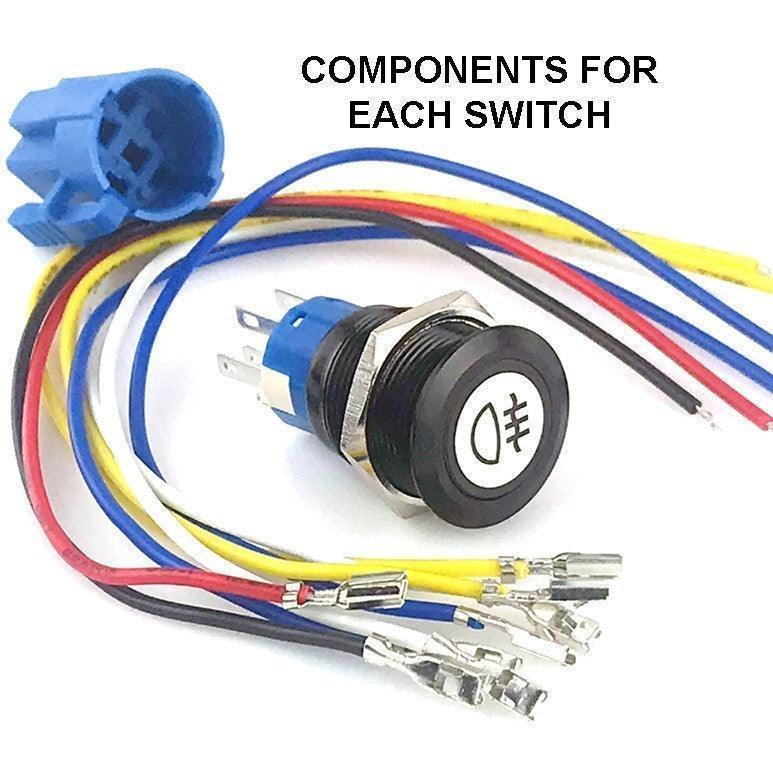

Supplied with six pre-assembled terminals and 200mm long wires and a plug block.
The White LED illumination has independant +12v and -12v terminals.
22mm A/F Hex nut and rubber sealing āOā ring included.
MOMENTARY PUSH BUTTON ECU SWITCH #BPBECU
Original: $11.93
-70%$11.93
$3.58Description
Illuminated ring and legend. Push button centre.
Black anodised brass and stainless steel body with 22mm diameter bezel that is only 1.5mm thick.
Fits in a 19mm hole in a panel up to 13mm thick. Overall length including plug 50mm.
Double Pole ,Normally Open and Normally Closed contacts.
5 Amp current rating.
Supplied with six pre-assembled terminals and 200mm long wires and a plug block.
The White LED illumination has independant +12v and -12v terminals.
22mm A/F Hex nut and rubber sealing āOā ring included.
MOMENTARY PUSH BUTTON ECU SWITCH #BPBECU
