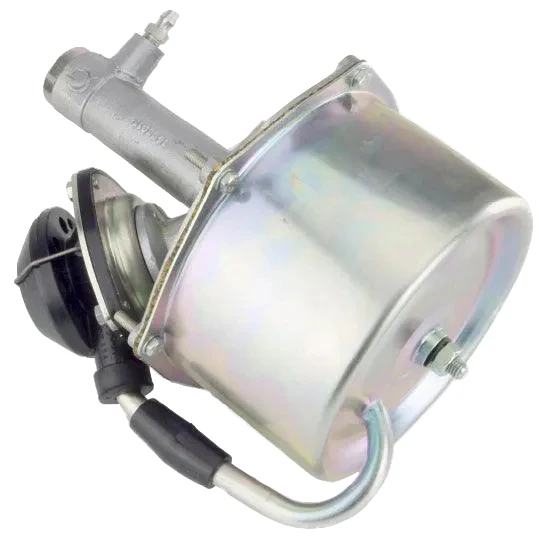

Compact Single Circuit Remote Brake Servo
Canister diameter 138mm.
Overall length 230mm.

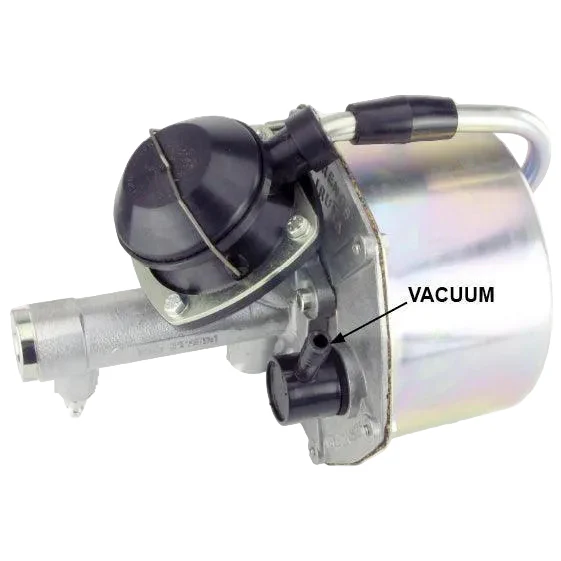

Vacuum inlet 3/8" (10mm) push-on hose tail.
Fluid inlet and outlet female threads 3/8"UNF.
2:1 power boost ratio at 600mm Hg vacuum.
Two M5 mounting studs on cylinder flange and one M8 on rear of canister.
Weight 2.05kg.

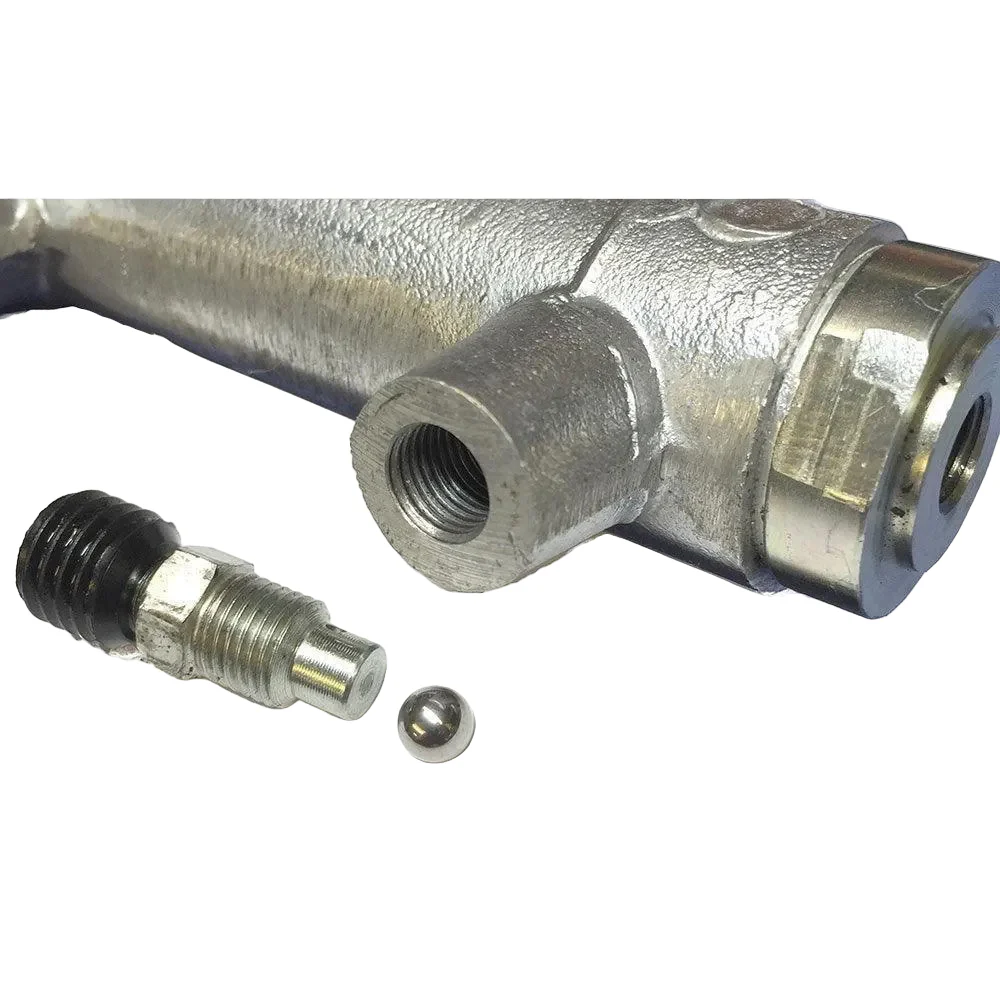

NOTE: THE BLEED SCREWS HAVE AN ACCOMPANYING BALL BEARING SEAL, BE CAREFUL NOT TO LOSE IF SCREW IS REMOVED. (see picture)
A mounting bracket is available #SINGBKT
COMPACT REMOTE SERVO #REMSERV2
Canister diameter 138mm.
Overall length 230mm.
Vacuum inlet 3/8" (10mm) push-on hose tail.
Fluid inlet and outlet female threads 3/8"UNF.
2:1 power boost ratio at 600mm Hg vacuum.
Two M5 mounting studs on cylinder flange and one M8 on rear of canister.
Weight 2.05kg.
NOTE: THE BLEED SCREWS HAVE AN ACCOMPANYING BALL BEARING SEAL, BE CAREFUL NOT TO LOSE IF SCREW IS REMOVED. (see picture)
A mounting bracket is available #SINGBKT
COMPACT REMOTE SERVO #REMSERV2
Original: $351.27
-70%$351.27
$105.38Description
Canister diameter 138mm.
Overall length 230mm.
Vacuum inlet 3/8" (10mm) push-on hose tail.
Fluid inlet and outlet female threads 3/8"UNF.
2:1 power boost ratio at 600mm Hg vacuum.
Two M5 mounting studs on cylinder flange and one M8 on rear of canister.
Weight 2.05kg.
NOTE: THE BLEED SCREWS HAVE AN ACCOMPANYING BALL BEARING SEAL, BE CAREFUL NOT TO LOSE IF SCREW IS REMOVED. (see picture)
A mounting bracket is available #SINGBKT
COMPACT REMOTE SERVO #REMSERV2
