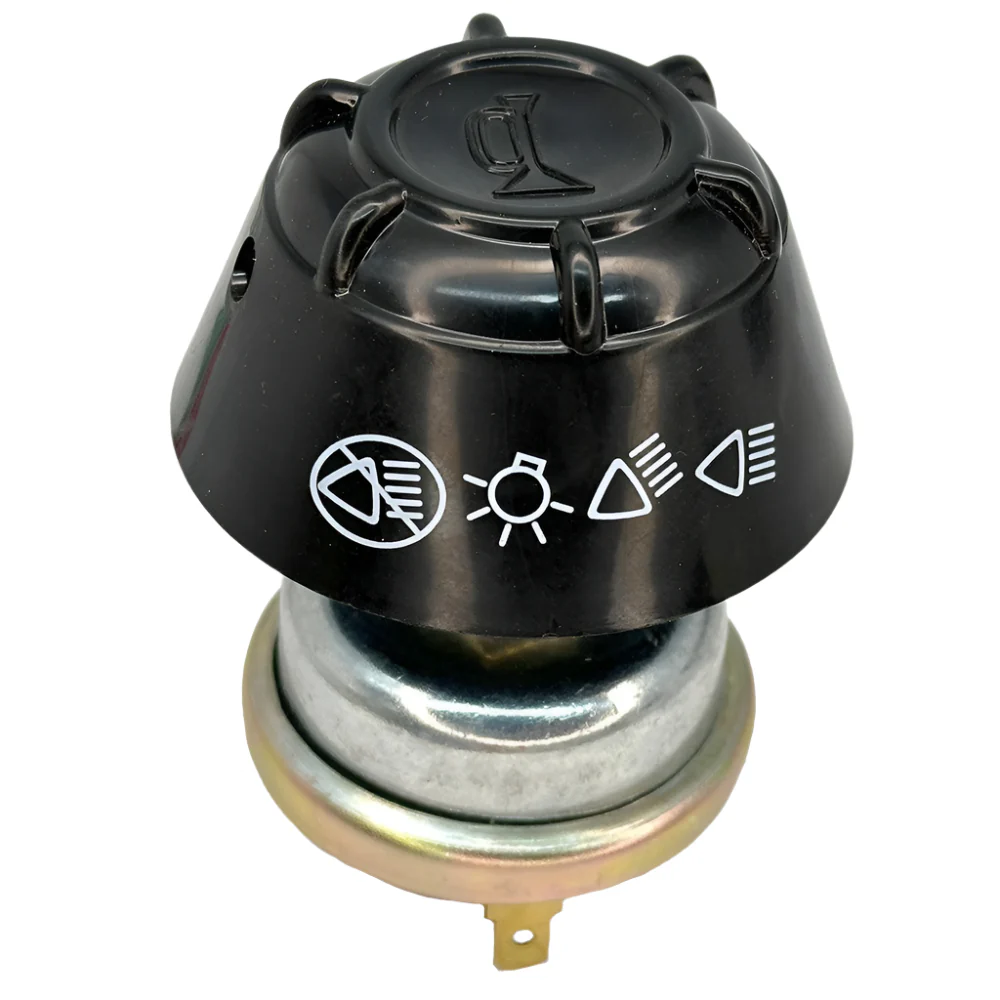

Black Large Rotary Headlamp And Horn Switch
Four position OFF-SIDE-DIP - MAIN & PUSH FOR HORN.
Big 64mm diameter 38mmfront projection knob for easy control.
1/4" spade terminal connections.
Rear projection 37mm.
Max panel thickness 4mm.
Mounts through a 12mm hole.
20 amp current rating.
NOTE: To remove knob push a pop rivet shaft into the hole in the side of the knob to release the sprung locating pin on the shaft

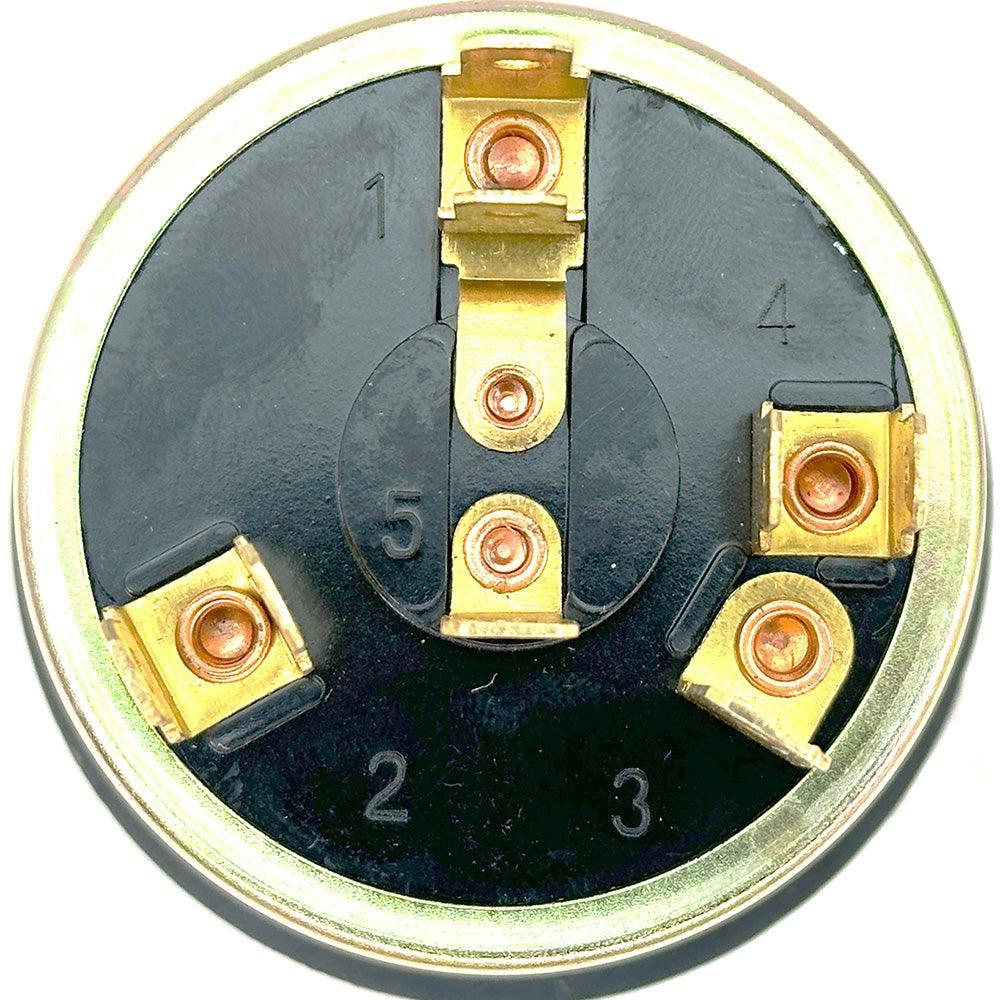

WIRING TERMINALS:
1 - Power in
2 - Side lights
3 - Dipped beam
4 - Main Beam
5- Horn
ROTARY HEADLAMP & HORN SWITCH #HLHSW
