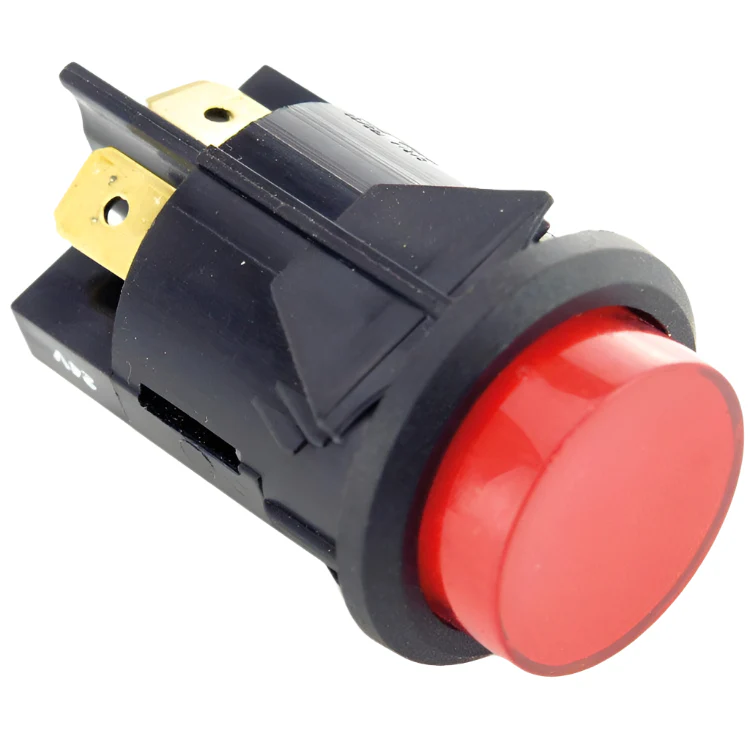

24 Volt Push Button Illuminated ON/OFF Switch
Will still illuminate dimly on a 12 Volt supply in the ON position or can be used without illumination.
Bezel diameter 28mm.
Button diameter 21mm.
Presses into a 25mm hole.
Rear projection 35mm.

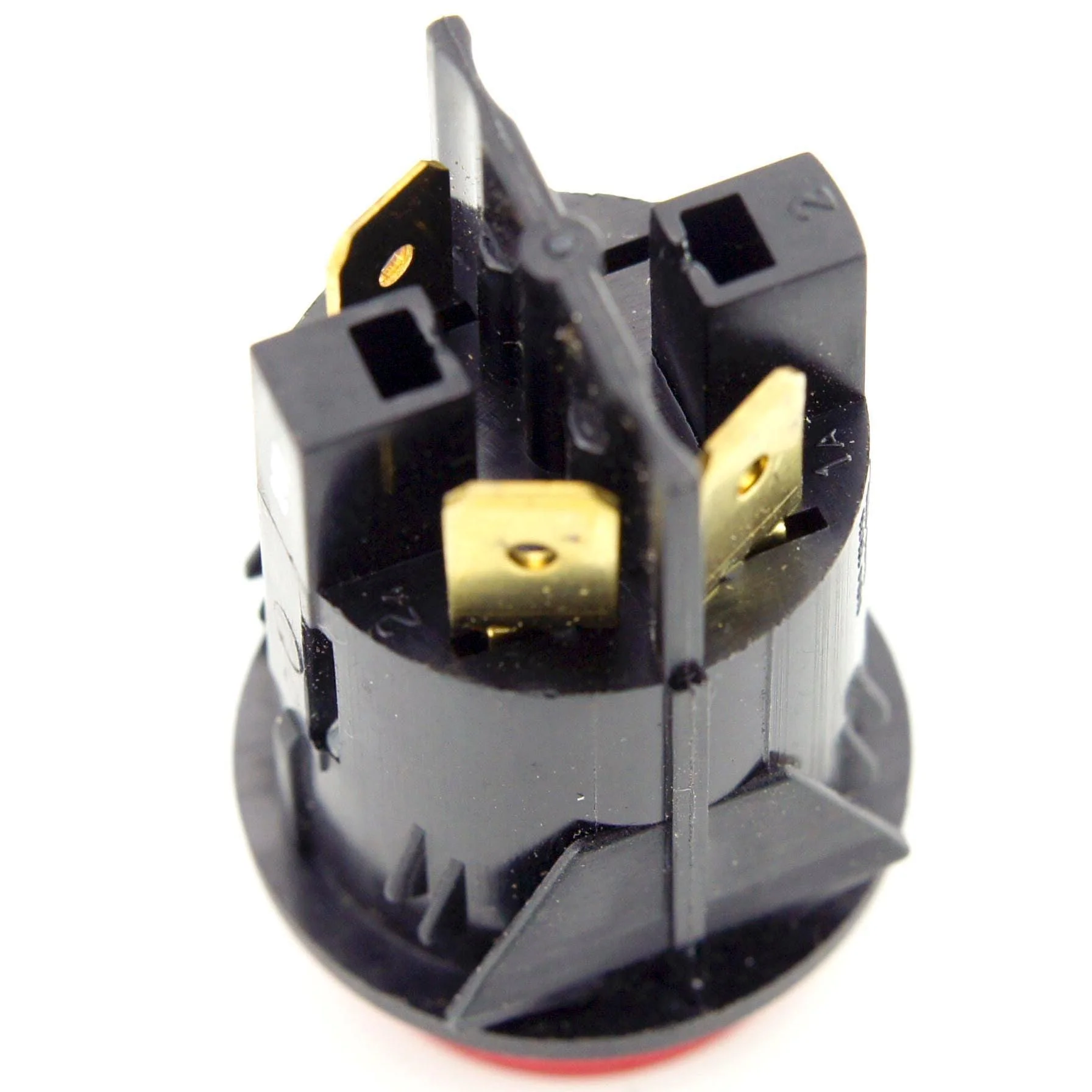

Three 1/4" male spade connectors.
16 Amp.
WIRING: 4B - +ve in, 2A - +ve out,
1A - negative for illumination.
24 VOLT PUSH BUTTON ILLUMINATED ON/OFF SWITCH #PBSW24V
Will still illuminate dimly on a 12 Volt supply in the ON position or can be used without illumination.
Bezel diameter 28mm.
Button diameter 21mm.
Presses into a 25mm hole.
Rear projection 35mm.
Three 1/4" male spade connectors.
16 Amp.
WIRING: 4B - +ve in, 2A - +ve out,
1A - negative for illumination.
24 VOLT PUSH BUTTON ILLUMINATED ON/OFF SWITCH #PBSW24V
Original: $1.33
-70%$1.33
$0.40Description
Will still illuminate dimly on a 12 Volt supply in the ON position or can be used without illumination.
Bezel diameter 28mm.
Button diameter 21mm.
Presses into a 25mm hole.
Rear projection 35mm.
Three 1/4" male spade connectors.
16 Amp.
WIRING: 4B - +ve in, 2A - +ve out,
1A - negative for illumination.
24 VOLT PUSH BUTTON ILLUMINATED ON/OFF SWITCH #PBSW24V
